These are the systems that ensure the control of the medical gases at the relevant service point after they leave the power plants and warn in case the line pressure falls below or exceeds the limit value.
Intended Use:
LCD Manifold Alarm
It is to provide gas separation from the main line of
departments such as operating theatres, intensive
care, patient floors of hospitals, to ensure that the gas
pressure is kept in balance, to monitor the pressure in
the installation and to warn the user when the pressure
values exceed the limit.
Place of Use:
It is used in places such as operating theatres, intensive
care, patient floors of hospitals where they need to be
separated from the main line in emergency and service situations.
Touch and Normal Alarm
Normal alarm: 5 pressurised, 1 vacuum
Pressure value 0-10 bar
Vacuum: 0- -1 bar or 760 mmHg

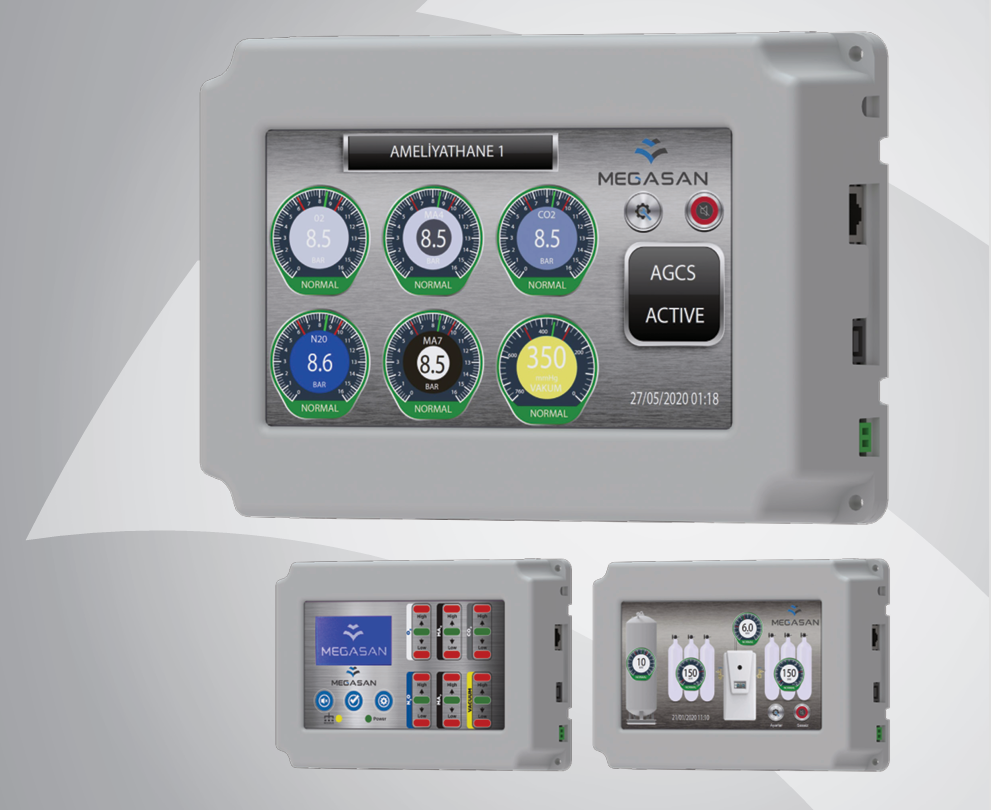

Touch LCD Floor Control Alarm
Touch LCD Manifold Alarm
Function Alarm System Features
✓ It can be added to the unit later,
✓ Supports up to 6 different gases,
✓ It gives an alarm if the pressure value is higher or lower
than the desired value,
✓ Visual and auditory alarm is available,
✓ It can repeat the given alarms and keeps the alarms
recorded,
✓ It has 2 ModBus outputs and 1 dry contact output,
✓ Thanks to the password protected interface, only
authorized persons can intervene,
✓ It can show the location where it is installed,
✓ It can be used as a 7” alarm system with PLC screen or
touch LED screen
