Reciprocating air compressors with gasoline engine

Oil Free Reciprocating Air Compressors

As a result of the cooperation between Japan Anest Iwata company and Lupamat, Lupamat’s oil free and air cooled reciprocating air compressors are launched as a new product and especially suitable for the sectors, in which it is necessary to work with oil free air, such as dentistry clinics, hospitals, electronic parts production facilities, food, textile and in many other sectors.

Oil Free Reciprocating Air Compressors

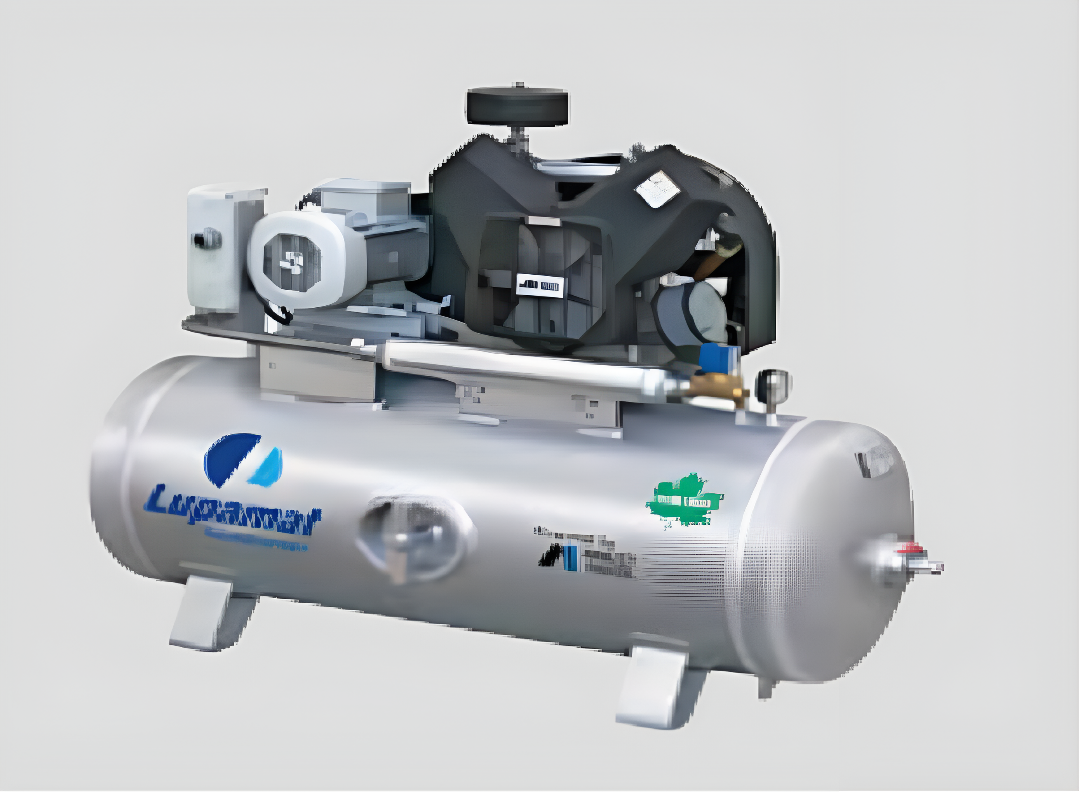

Receiver Mounted Type

Model	Max. Pressure (bar/psi)	Stroke Capacity (l/min)	FAD (l/min)	Motor Power (kW / hp)	Receiver Volume (lt)
LPW 075/10 D	10	148	72	0.75 / 1	40
LPW 157/10 D	10	296	135	1.5 / 2	75
LPW 221/10 D	10	437	226	2.2 / 3	75
LPW 375/10 D	10	673	370	4 / 5.5	150
LPW 551/10 D	10	992	535	5.5 / 7.5	387
LPW 751/10 D	10	1180	720	7.5 / 10	387
LPW 110/10 D	10	1545	1050	11 / 15	387
LPW 075/14 D	14	148	72	0.75 / 1	40
LPW 157/14 D	14	296	135	1.5 / 2	75
LPW 221/14 D	14	437	226	2.2 / 3	75
LPW 375/14 D	14	673	370	4 / 5.5	150
LPW 551/14 D	14	992	535	5.5 / 7.5	387
LPW 751/14 D	14	1180	720	7.5 / 10	387
LPW 110/14 D	14	1545	1050	11 / 15	387

Cabinet Type

Model	Max. Pressure (bar/psi)	Stroke Capacity (l/min)	FAD (l/min)	Motor Power (kW / hp)
LPW 075/8.5 K	8.5	148	78	0.75 / 1
LPW 157/8.5 K	8.5	296	135	1.5 / 2
LPW 221/8.5 K	8.5	437	226	2.2 / 3
LPW 375/8.5 K	8.5	673	370	4 / 5.5
LPW 551/8.5 K	8.5	992	535	5.5 / 7.5
LPW 751/8.5 K	8.5	1180	720	7.5 / 10
LPW 110/8.5 K	8.5	1545	1050	11 / 15
LPW 075/14 K	14	148	78	0.75 / 1
LPW 157/14 K	14	296	135	1.5 / 2
LPW 221/14 K	14	437	226	2.2 / 3
LPW 375/14 K	14	673	370	4 / 5.5
LPW 551/14 K	14	992	535	5.5 / 7.5
LPW 751/14 K	14	1180	720	7.5 / 10
LPW 110/14 K	14	1545	1050	11 / 15

Receiver Mounted Cabinet Type

Model	Max. Pressure (bar/psi)	Stroke Capacity (l/min)	FAD (l/min)	Motor Power (kW / hp)	Receiver Volume (lt)
LPW 075/8.5 KD	8.5	148	78	0.75 / 1	75
LPW 157/8.5 KD	8.5	296	135	1.5 / 2	75
LPW 221/8.5 KD	8.5	437	226	2.2 / 3	75
LPW 375/8.5 KD	8.5	673	370	4 / 5.5	150
LPW 551/8.5 KD	8.5	992	535	5.5 / 7.5	387
LPW 751/8.5 KD	8.5	1180	720	7.5 / 10	387
LPW 110/8.5 KD	8.5	1545	1050	11 / 15	387
LPW 157/14 KD	14	296	135	1.5 / 2	75
LPW 221/14 KD	14	437	226	2.2 / 3	75
LPW 375/14 KD	14	673	370	4 / 5.5	150
LPW 551/14 KD	14	992	535	5.5 / 7.5	387
LPW 751/14 KD	14	1180	720	7.5 / 10	387
LPW 110/14 KD	14	1545	1050	11 / 15	387
